How BIM can Bankrupt Your Firm

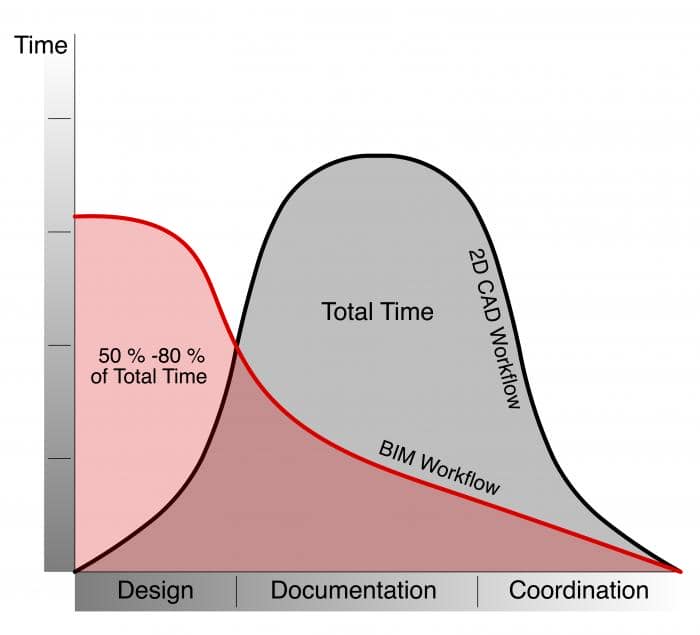

Why do some firms embrace BIM and rave about its benefits while other firms try BIM and fail miserably? We all know this diagram:

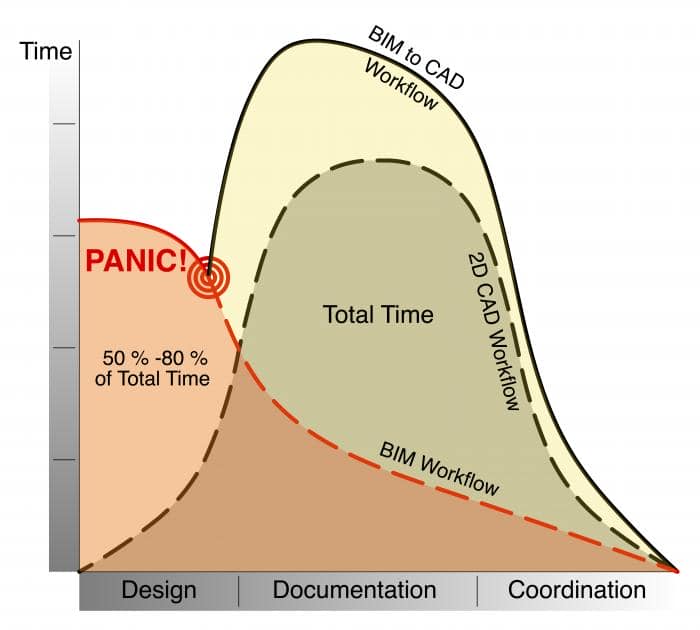

But here’s another diagram. This is the one that describes firms that panic, firms that succumb to Fear, Uncertainty, and Dread (FUD), firms that after one or two attempts let their boxes of Revit 2010 get dusty on the shelves or backslide into using ArchiCAD 12 as a 2D CAD program. This is why they fail.
The Worst of Both Worlds.
If you start off following the BIM paradigm, then panic and shift to a CAD mindset, you’ll spend 50%-80% of your time on design and then 50-80% of your time on documentation. In the best case scenario you will use all your time and fee by the end of Documentation, leaving nothing for Coordination. In the worst case scenario, you will hit your 100% mark with an undocumented, uncoordinated, half-baked design. Jumping ship once you’ve started down the BIM path won’t save you anything. It’ll just lead to disaster.
(and remember time = money)
Follow Shoegnome on Facebook and Twitter for more on being an Architect in the 21st Century.
Erik
Well said. Again.
Jared Banks
Thanks Erik! And don’t think I forgot that I owe you a guest post one of these days… and that you’ll owe me one too, if you want.
Bilal Succar
Jared…Great post + great graphics! Thank you.
Zeyang
great graphics!
Djordje
regretfully, proven in practice too often …
Stephan Langella
Hi Jared,
I agree with the notion of panic equals drowning.
I question the curves in the diagram as they seem to be generally accepted but in 22 years of this process I’ve never seen the BIM one as shown.
A steep rise early, gentle rise and then taper off 2-3 weeks before end of construction, like a flat bell.
Where does this diagram that appears to start with 20 people come from???
Jared Banks
Stephen, good question. I’m not 100% sure of the origin of the first diagram (I got it from Graphisoft a few years ago). While I know the lines are just conceptualizing an insanely complex problem and process, I think there is truth to the front loading of effort. Also from my experience with smaller projects & ArchiCAD/BIM, the graph feels quite true. But I could see that on much larger projects (with larger teams) the curve might look a lot different for both processes.
I’d be very curious to see what you think is a more reasonable time/effort curve. Shoot me an e-mail and we’ll do a follow up post!
Chris L
I think the issue that could be improved with these graphs is simply that there needs to be a “Pre-Design” phase (which includes but is not limited to “existing conditions”) on that graph, located before the Design Phase – ESPECIALLY since Information is becoming increasingly important.
The other thing that would skew the above graphs is that the newbies are probably not coming into the process with a proven template – so are starting WAY behind the eight-ball. Imagine if you added a “Template preparation” phase to the above graphs!!
(PS Jared, I’m now at least four-links deep in a rabbit trail of interesting topics that started back at your Sloppy Modelling Isnt Making Me Sad post. The trouble is you write too well. Can you please do the occasional boring blog post just so that I can stand a chance of breaking free and getting back to work!? 😀 )
Jared Banks
Chris, great observation. These graphs are due for an update. You are absolutely right that templates and pre-design make all the difference. If we look at BIM/CAD/hand drafting from the standpoint of templates and ‘what do you have on Day 1 (or maybe Day 0)’, then the benefits become more clear. BIM, being a more robust tool and process allows for more templating and setup. So the starting point (from graphics to sheets to default composites to data and model elements) for BIM + Template is so much greater than any previous production tool + template. This is both because of the tool and the process (ARCHICAD, Revit, etc. can handle templates better than CAD and because the process encourages/facilitates templating).
I clearly need to return to this post and create those graphs!
I foresee two new graphs: Tool + Template, Tool without Template.
(also glad you enjoy my writing and that I’m sending you down deep rabbit holes of BIM).
